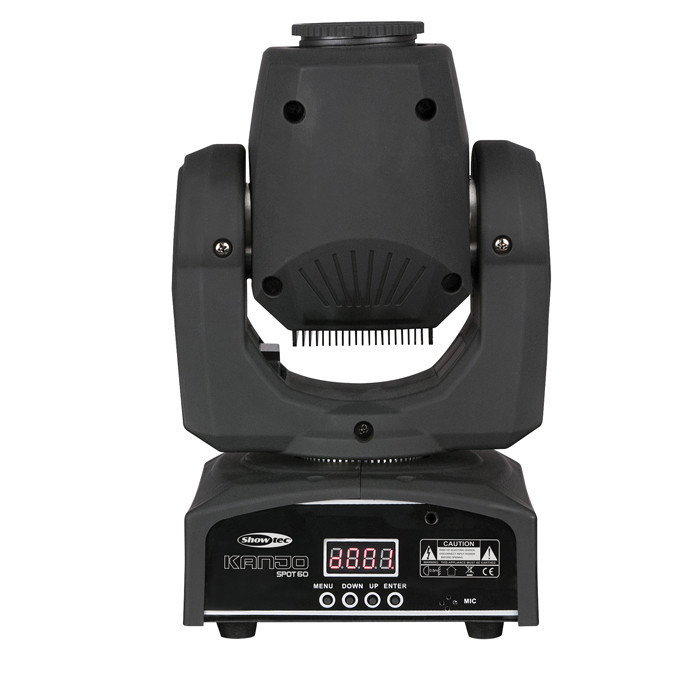

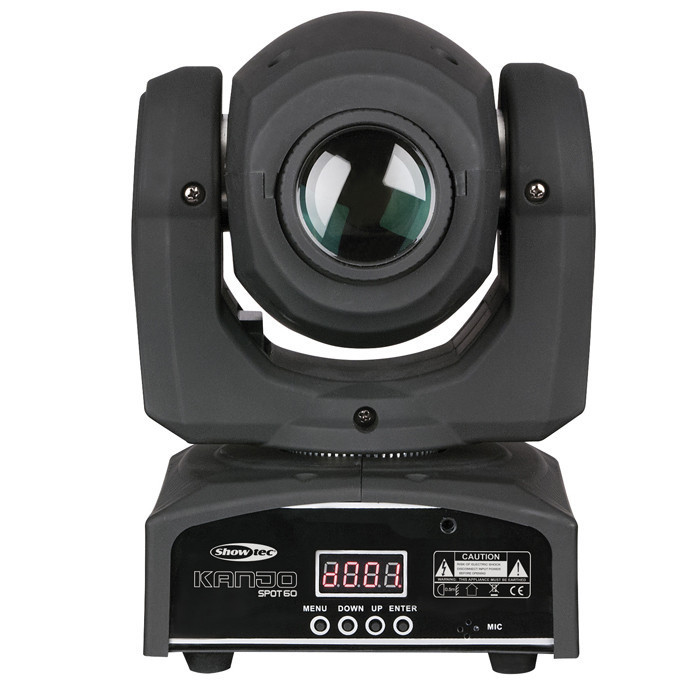

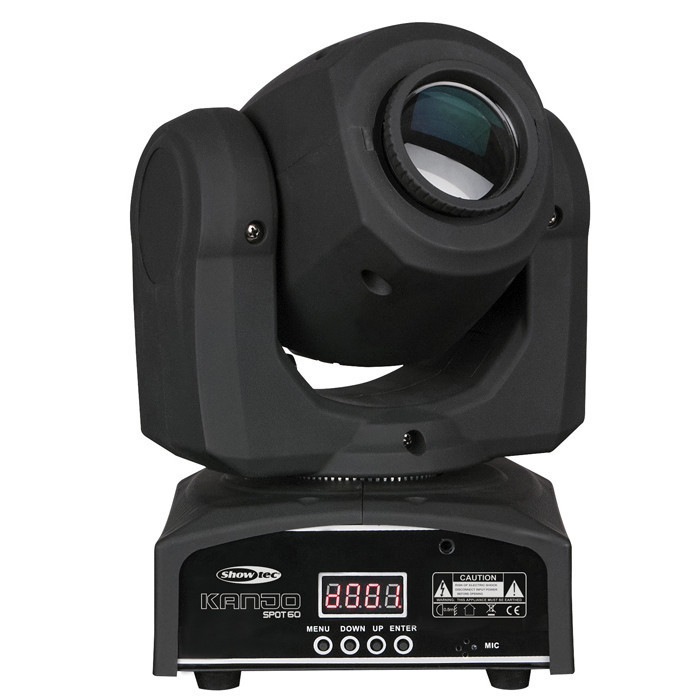

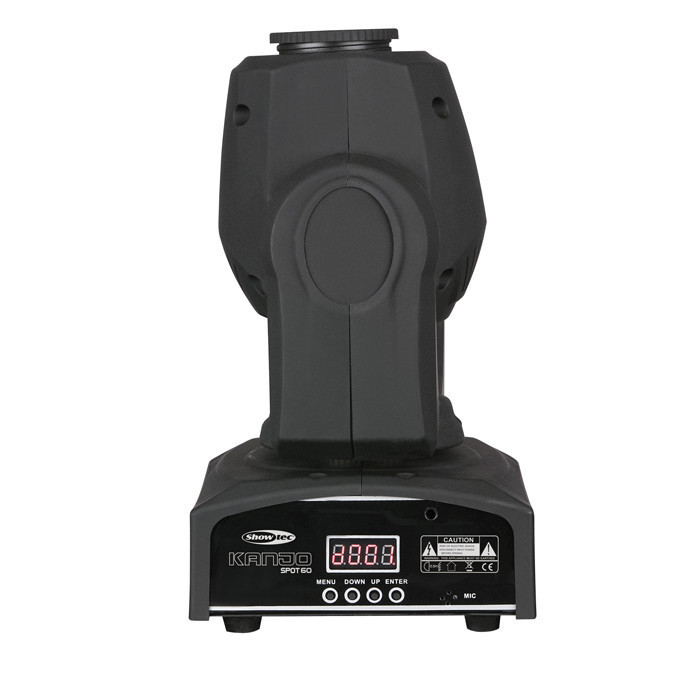

De Showtec Kanjo Spot 60 is een ultra-compacte 60 watt LED Moving Head geschikt voor binnenlocaties. Zijn 7 vaste gobo's + open en 7 dichroïsche kleuren + wit creëren mooie optische effecten kunnen worden bestuurd via DMX en master/slave in zowel handmatige, automatische en geluidsgestuurde modus.
De Kanjo Spot 60 is uitgerust met 0-100 % dimmer en 0-20 Hz stroboscoop effecten. Verder heeft hij een 18° vaste stralingshoek en handmatige focus voor een scherpe projectie. Zijn compacte een-klem 3 kg ontwerp is ideaal voor snelle rigging op het podium.
Specificaties
Specificaties
Source
Type lichtbron LED
Aantal lichtbronnen 1
Vermogen lichtbron 60 W
Lux @ 5m 656 lx
Lumen totaal 16400 lm
CCT 7500 K
Optical
Beam angle circular maximaal 18°
Zoom type Manual
Focus Manual
Control and Programming
Control mode Auto, DMX, Master Slave, Sound
DMX kanalen 8, 10
Protocollen DMX
Scherm 7-segment
Dynamic Effects
Dimmer 0-100 %
Strobe 0-20 Hz
Colour system Colour Wheel
Kleurenwiel index en rotatie Yes
Dichroide kleurenwiel 1 7 + Open
Gobo systeem Metal
Gobowiel index & rotatie Yes
Gobo wiel 1 7 + Open
Movement
Pan 540°
Tilt 270°
Pan/Tilt resolutie 16-bit
Electrical Specifications and Connections
Ingangssvoltage 100-240 VAC 50-60 Hz
Vermogensverbruik 90 W
Zekering 3 A

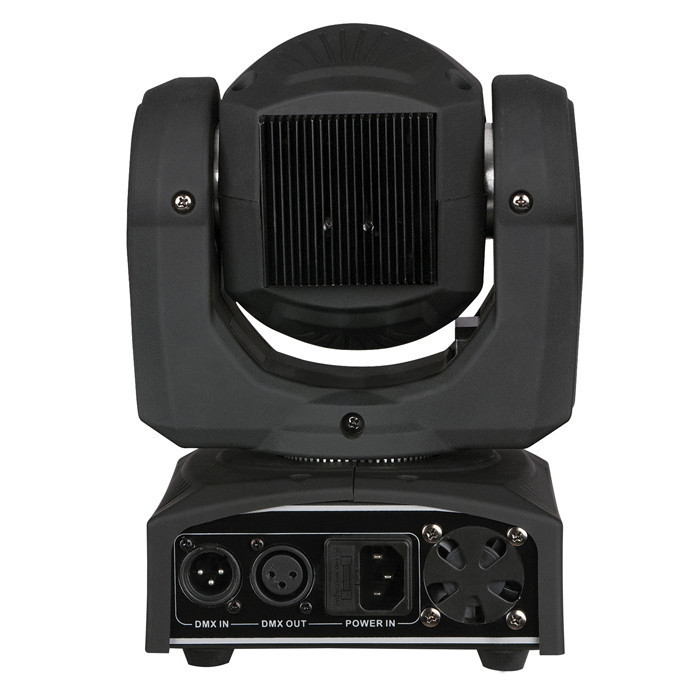

Power connector in IEC
DMX connector XLR 3P In/Out
DMX connector in XLR 3P
DMX connector uit XLR 3P
Mechanical Specifications
Lengte (mm) 145 mm
Breedte (mm) 160 mm
Hoogte (mm) 265 mm
Gewicht 3 kg
IP waarde IP20 (indoor use only)
Behuizing Plastic
Kleur Black
Product Properties Koeling
Axial fan Rigging
Montage opties Bracket
Bevestigingspunt safety kabel Yes
Veiligheidsogen 1
Thermal Specifications
Maximale omgevingstemperatuur 40 °C
Included Items
Meegeleverde kabels IEC cable
Meegeleverde rigging Bracket
