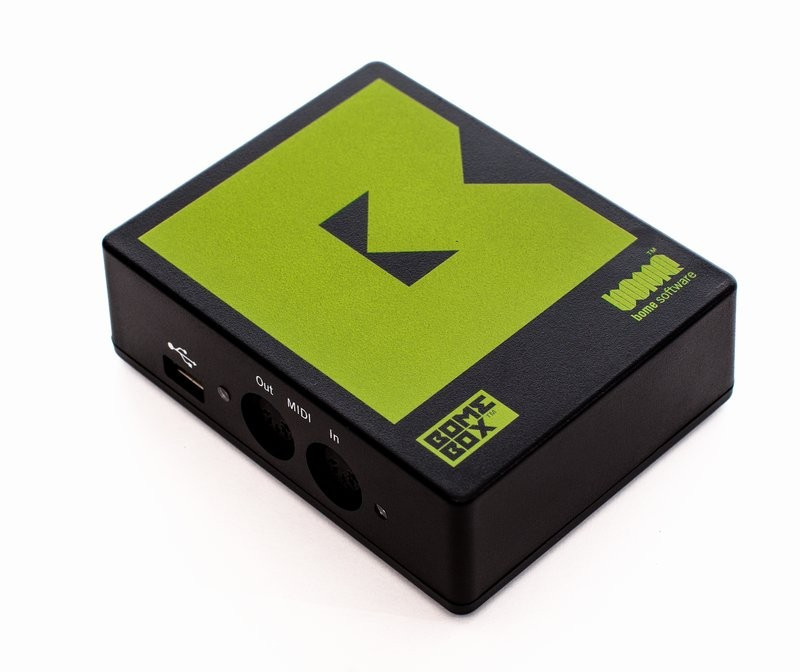

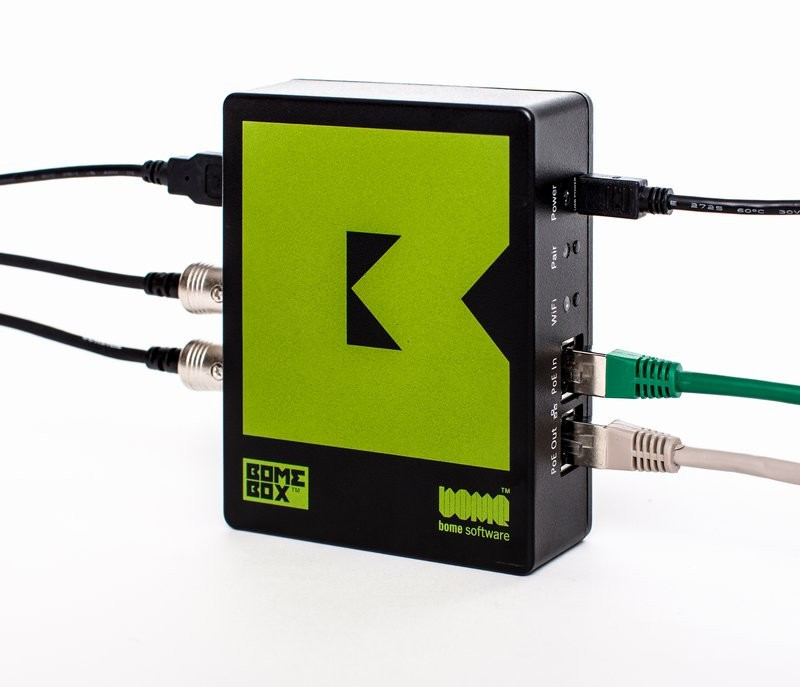

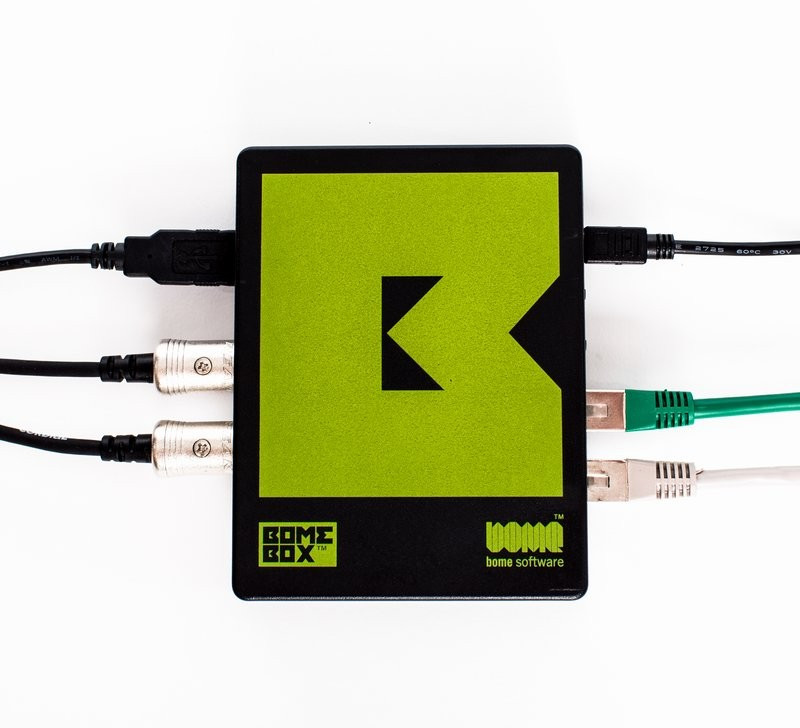

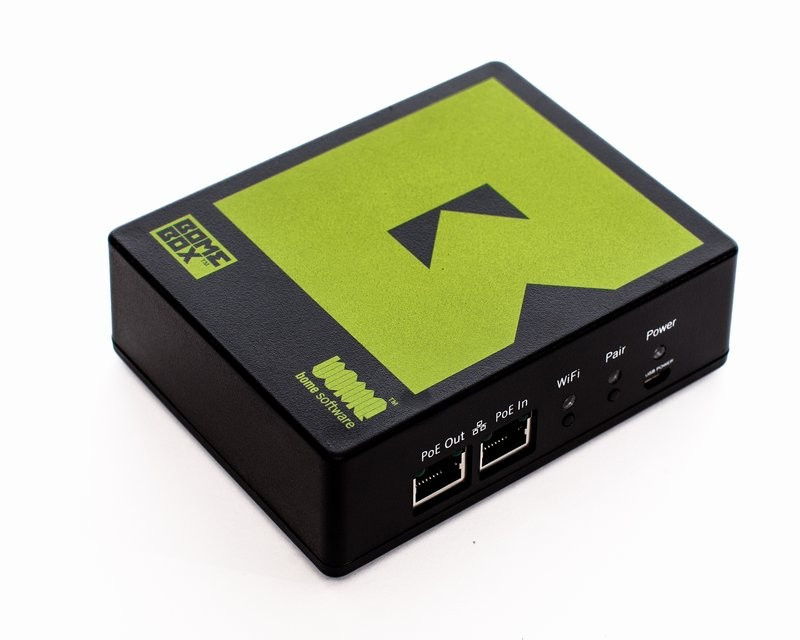

BomeBox™: the MIDI Hub for Stage and Studio
The BomeBox is the solution for connecting and mapping devices via MIDI, Ethernet, WiFi, and USB (without the need of a computer). Cross-connect USB-MIDI devices (powered by the BomeBox), MIDI 5-pin DIN, other BomeBoxes, and computers.
Specs
Define arbitrary MIDI Thru connections (routes) from/to all connected MIDI devices

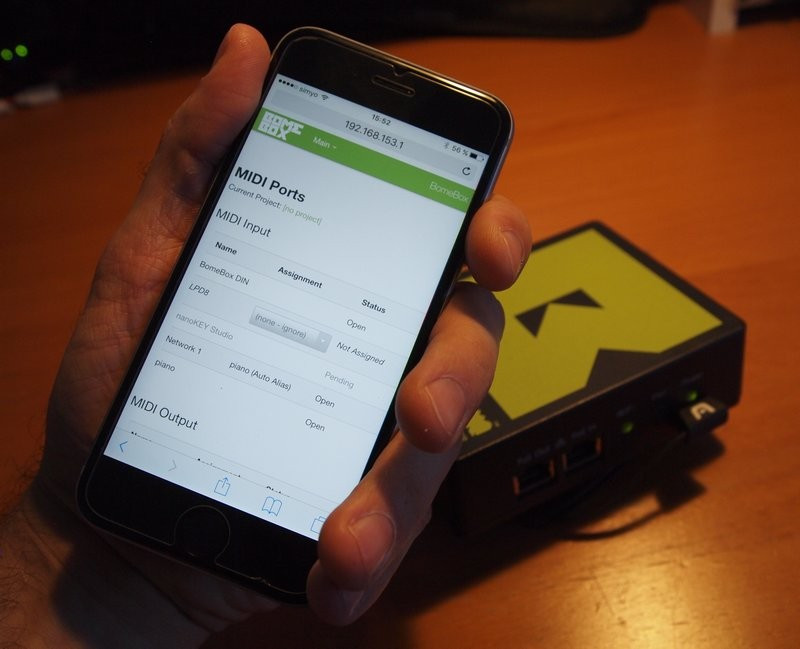

Web Config for easy configuration from any WiFi enabled device
For advanced mappings, load & execute MIDI Translator Pro project files
MIDI Connections to computers using high-speed network protocol via Ethernet or WiFi using Bome Network Tool
MIDI in & out with very low latency
USB 2 Host (Type A receptacle) for connecting MIDI controllers, synthesizers, serial ports, USB Hubs, etc.
2x Ethernet 100MBit/s
WiFi: 802.11 b/g/n, 2.4 GHz
Power: uses approx 150mA, either
via Micro-USB Type B: standard cell phone charger, or
via Power over Ethernet (PoE, 48V): Ethernet In port
Provides power for
connected USB-MIDI devices (max. 1A)
other daisy chained BomeBoxes via PoE Out (if powered via PoE)
New Features will be made available via firmware update
Dimensions: 121mm x 96 mm x 38 mm (4.8″ x 3.7″ x 1.5″)
Weight: 180g
