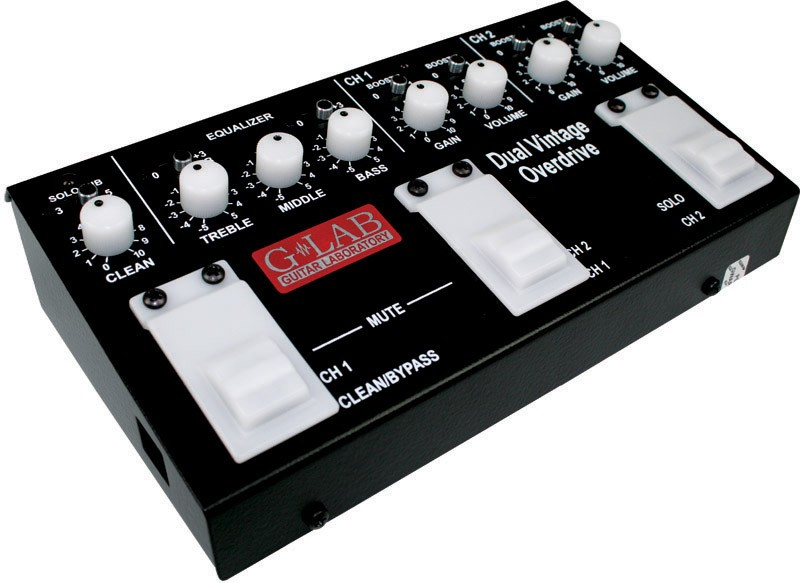

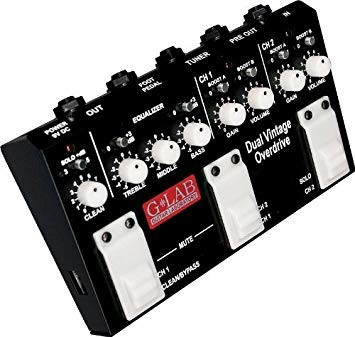

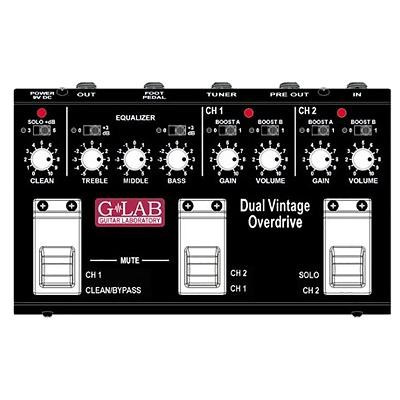

• Dual Vintage Overdrive DVO

The Dual Vintage Overdrive is a full analog foot preamp suitable for every guitar player. As well beginners as advanced players or even professional musicians are searching for the New, the Best and the Unique tones of their guitars. Everybody will find not just one tone but tones of new tones – very special for themselves. More, the guitar player will be able to easily and quickly switch between 3 tone-presets: on 2 channels with individually adjusted overdrive and choose one mode from: SOLO, CLEAN or BYPASS.

It is recommended to connect DVO to power amplifier ( if the amp has effect loop then connect to RETURN connector). In this case the tone will depend on the amps PRESENCE control.
DVO preamp sounds very good with Celestion Vintage 30 speakers.

Specificaties:
- classical guitar tube pre-amp emulated by selected FET transistors
- 3 point timbre control identical with tube amp characteristics: TREBLE, MIDDLE, BASS
- two overdriven channels (CHANNEL 1, CHANNEL 2) with gain control (GAIN), BOOST switches and volume control (VOLUME); enabling to perform CLEAN, CRUNCH or FULL OVERDRIVEN sounds
- SOLO function with +3 dB or +5 dB boost
- four working modes of footswitches (set by DIP switches):

1. CHANNEL 1, CHANNEL 2, SOLO (CHANNEL 2 +3 dB or +5 dB boost)
2. CHANNEL 1, CHANNEL 2, SOLO (currently active +3 dB or +5 dB boost)
3. CLEAN, CHANNEL 1, CHANNEL 2
4. BYPASS, CHANNEL 1, CHANNEL 2

- clean channel with volume control (CLEAN)
- independent guitar TUNER output with the silent tuning function
- PRE OUT output with buffered direct signal from a guitar
- FOOT PEDAL input for controlling by the GSC controller or by a footswitch
- two modes of working with an amp by using "DVO switching cable":

- using pre-amp’s settings
- skipping pre-amp and providing signal (from CHANNEL 1 or CHANNEL 2 of DVO) directly to the amp

- TREBLE and BASS boost switches backlighted footswitches
- FOOT PEDAL functions:

at modes 1 and 2: A footswitch: CHANNEL 1/ CHANNEL 2, B footswitch: SOLO ON/OFF

at modes 3 and 4: A footswitch: CLEAN/CHANNEL 1 or CHANNEL 2, B footswitch: CHANNEL 1/ CHANNEL 2

- powder coated casing
- power supply 9V DC 80 mA (with opposite polarization protection), the GSC can be used for power supply
