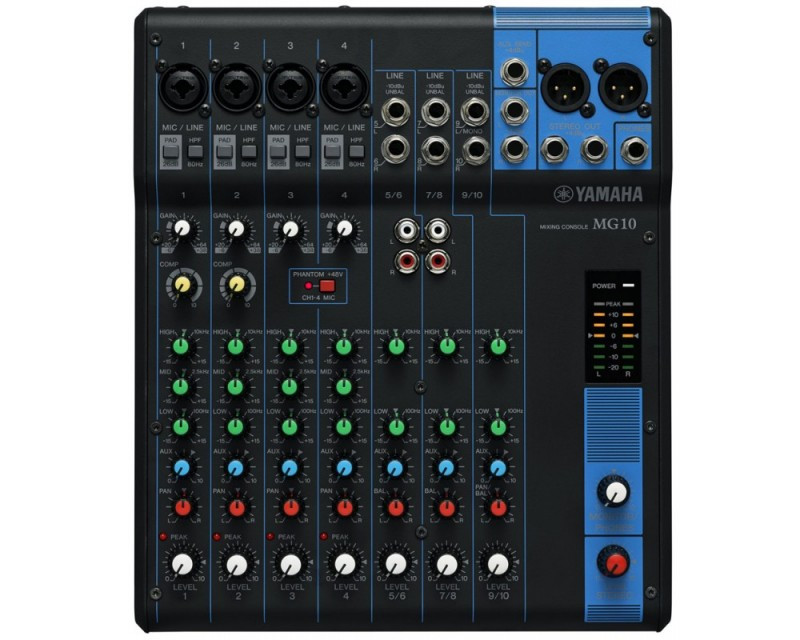

• MG10 mixer 10-input

De derde generatie Yamaha MG mixer beschikt over high-end professionele microfoon voorversterkers en geeft daarom een geweldige klank.

10-Channel Mixing Console
Max. 4 Mic / 10 Line Inputs (4 mono + 3 stereo)
1 Stereo Bus
1 AUX (incl. FX)
“D-PRE” mic preamps with an inverted Darlington circuit
1-Knob compressors
PAD switch on mono inputs
+48V phantom power
XLR balanced outputs
Metal chassis
Dimensions(W×H×D): 244 mm x 71 mm x 294 mm (9.6"x 2.8"x 11.6")
Net Weight: 1.9 kg (4.19 lbs.)
Phantom power: +48 V
Mono[MIC/LINE]: 4
Stereo[LINE]: 3
STEREO OUT: 2
MONITOR OUT: 1
PHONES: 1
AUX SEND: 1
Bus: Stereo: 1, AUX[FX]: 1
PAD: 26 dB (Mono)
HPF: 80 Hz, 12 dB/oct (Mono)
COMP: 1-knob compressor Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB, Attack time: approx. 25 msec, Release time: approx. 300 msec
EQ HIGH: Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
EQ MID: Gain: +15 dB/-15 dB, Frequency: 2.5kHz peaking
EQ LOW: Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
PEAK LED: LED turns on when post EQ signal reaches 3 dB below clipping
Level Meter: 2 x 7 -segment LED meter [PEAK, +10, +6, 0, -6, -10, -20 dB]
Total harmonic distortion: 0.02 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +24dBu (1kHz), GAIN knob: Min
Frequency response: +0.5 dB/-1.0 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
Equivalent input noise: -128 dBu (Mono Input Channel, Rs: 150O, GAIN knob: Max)
Residual output noise: -102 dBu (STEREO OUT, STEREO LEVEL knob: Min)
Crosstalk: -83 dB
Power requirements: PA-10 (AC 38 VCT, 0.62A, Cable length = 3.6 m) or equivalent recommended by Yamaha
Power consumption: 22.9 W
W: 244 mm (9.6")
H: 71 mm (2.8")
D: 294 mm (11.6")
Net weight: 1.9 kg (4.19 lbs.)
Accessories: Included Accessory: AC Adaptor, Owner’s Manual, Technical Specifications, Optional Accessory: Mic Stand Adaptor BMS-10A
Others: Operating Temperature: 0 to +40°C
