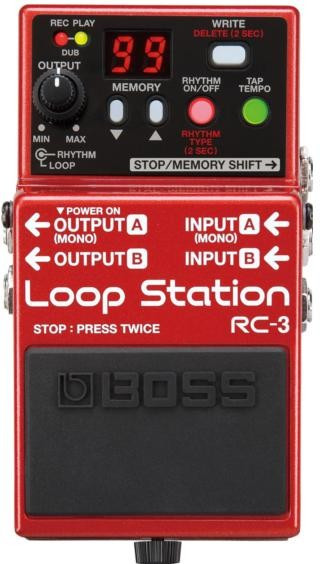

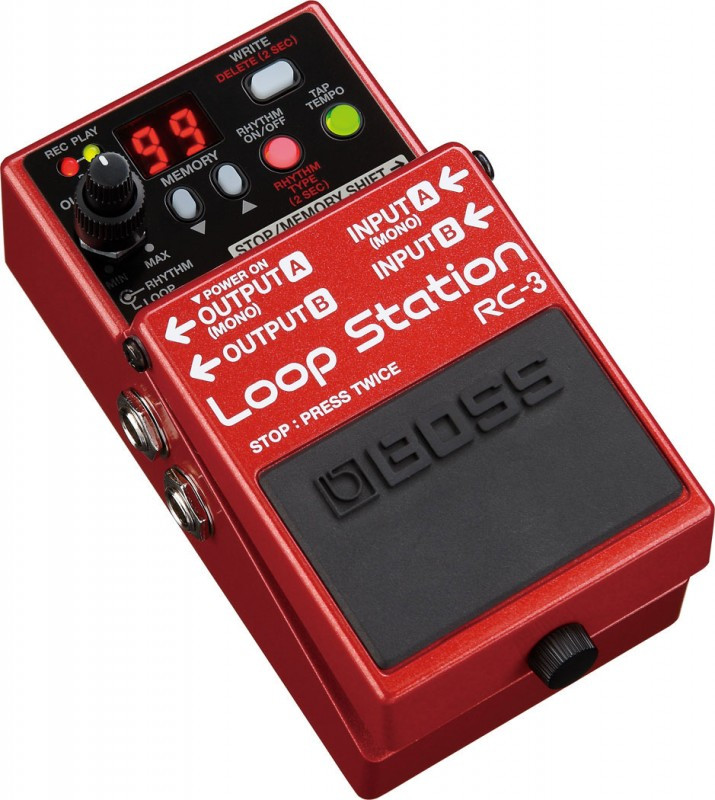

• RC-3 Looper Station

3 UUR STEREO OPNAME IN EEN STOMPBOX

Al meer dan 10 jaar zijn de BOSS Loop Station modellen een gevestigde waarde op het gebied van live looping. De RC-3 heeft de kracht van een BOSS Looper maar in de gekende compacte behuizing. 99Loop phrases, 3 uur stereo opname en ingebouwde Rhythm Guide. Eenvoudig in gebruik en dankzij de USB 2.0 poort geschikt voor het importeren en exporteren van wav bestanden.


Nominal Input Level

INPUT: -20 dBu
AUX IN: -10 dBu

Input Impedance

INPUT: 1 M ohm
AUX IN: 22 k ohms

Nominal Input Level

INPUT: -20 dBu
AUX IN: -10 dBu

Input Impedance

INPUT: 1 M ohm
AUX IN: 22 k ohms

Nominal Output Level -20 dBu

Output Impedance 1 k ohm

Recommended Load Impedance

10 k ohms or greater

Recording/Playback

Maximum Recording Time: Approximately 3 hours
Maximum Phrase Memory: 99 phrases
Number of tracks: 1
Data Format: WAV (44.1 kHz, 16-bit linear, stereo)

Rhythm Type

Hi-Hat, Kick & Hi-Hat, Rock 1, Rock 2, Pop, Funk, Shuffle, R & B, Latin, Percussion

USB Interface

Hi-Speed USB mass storage device class

Controls

Pedal switch
LOOP OUTPUT knob
RHYTHM OUTPUT knob
DOWN button
UP button
WRITE button
RHYTHM ON/OFF button
TAP TEMPO button

Indicators

REC, PLAY (DUB) indicator

Display

7 segments, 2 characters (LED)

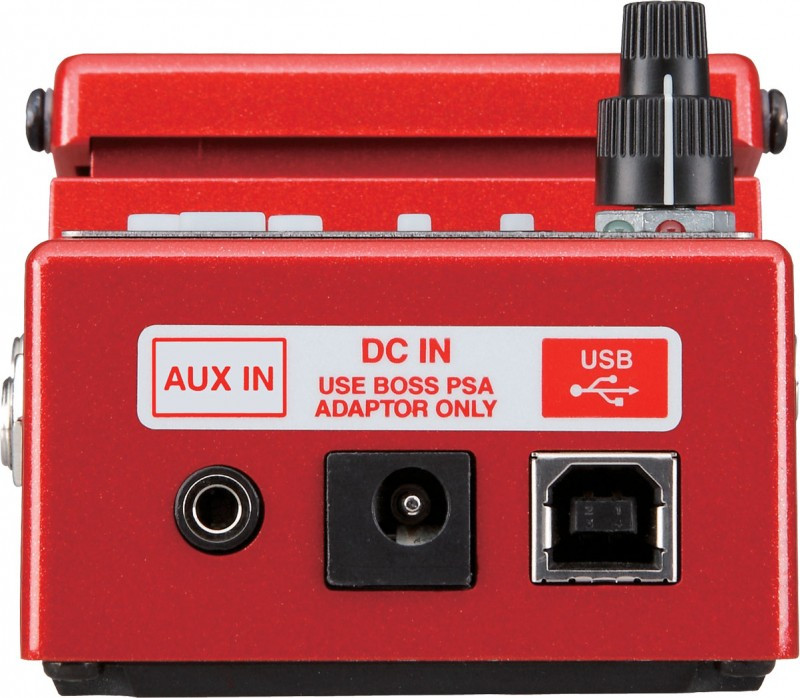

Connectors

INPUT A Jack: 1/4" phone type
INPUT B Jack: 1/4" phone type
AUX IN Jack: Stereo miniature phone type
OUTPUT A Jack: 1/4" phone type
OUTPUT B Jack: 1/4" phone type
STOP/MEMORY SHIFT Jack: 1/4" TRS phone type
USB Connector
DC IN Jack (DC 9 V)

Power Supply

DC 9 V: Alkaline battery (9 V, 6LR61)
AC Adaptor (PSA series: sold separately)
* Rechargeable Ni-MH batteries cannot be used.

Current Draw

70 mA (DC 9 V)

Expected battery life under continuous use

Alkaline battery (9 V, 6LR61): Approx. 3 hours
These figures will vary depending on the actual conditions of use.

Included Accessories

Owner's Manual
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Alkaline battery (9 V, 6LR61): already installed in unit

Options (sold separately)

AC Adaptor (PSA series)
Footswitch (FS-5U, FS-6, FS-7)

SIZE AND WEIGHT

Width

73 mm
2-7/8 inches

Depth

129 mm
5-1/8 inches

Height

59 mm
2-3/8 inches

Weight

450 g
1 lbs.

-20 dBu

Output Impedance

1 k ohm

Recommended Load Impedance

10 k ohms or greater

Recording/Playback

Maximum Recording Time: Approximately 3 hours
Maximum Phrase Memory: 99 phrases
Number of tracks: 1
Data Format: WAV (44.1 kHz, 16-bit linear, stereo)

Rhythm Type

Hi-Hat, Kick & Hi-Hat, Rock 1, Rock 2, Pop, Funk, Shuffle, R & B, Latin, Percussion

USB Interface

Hi-Speed USB mass storage device class

Controls

Pedal switch
LOOP OUTPUT knob
RHYTHM OUTPUT knob
DOWN button
UP button
WRITE button
RHYTHM ON/OFF button
TAP TEMPO button

Indicators

REC, PLAY (DUB) indicator

Display

7 segments, 2 characters (LED)

Connectors

INPUT A Jack: 1/4" phone type
INPUT B Jack: 1/4" phone type
AUX IN Jack: Stereo miniature phone type
OUTPUT A Jack: 1/4" phone type
OUTPUT B Jack: 1/4" phone type
STOP/MEMORY SHIFT Jack: 1/4" TRS phone type
USB Connector
DC IN Jack (DC 9 V)

Power Supply

DC 9 V: Alkaline battery (9 V, 6LR61)
AC Adaptor (PSA series: sold separately)
* Rechargeable Ni-MH batteries cannot be used.

Current Draw

70 mA (DC 9 V)

Expected battery life under continuous use

Alkaline battery (9 V, 6LR61): Approx. 3 hours
These figures will vary depending on the actual conditions of use.

Included Accessories

Owner's Manual
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Alkaline battery (9 V, 6LR61): already installed in unit

Options (sold separately)

AC Adaptor (PSA series)
Footswitch (FS-5U, FS-6, FS-7)

SIZE AND WEIGHT

Width

73 mm
2-7/8 inches

Depth

129 mm
5-1/8 inches

Height

59 mm
2-3/8 inches

Weight

450 g
1 lbs.
