De Ibanez AZ-serie combineert waardevol Japans vakmanschap met de nieuwste fabricagetechnieken die mogelijk zijn.
Gebaseerd op ideeën van de beste gitarist ter wereld, inspireert de AZ-serie muzikanten op welke manier dan ook.

Features

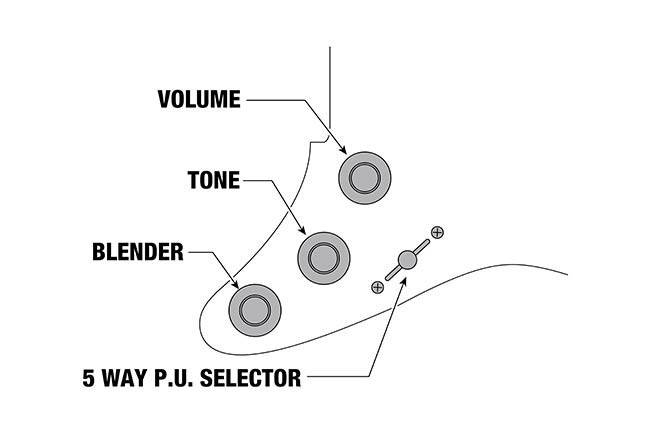

Blender

With the simple turn of the blend knob, you can incorporate just the right amount of each pickup in a given position to achieve your desired sound.

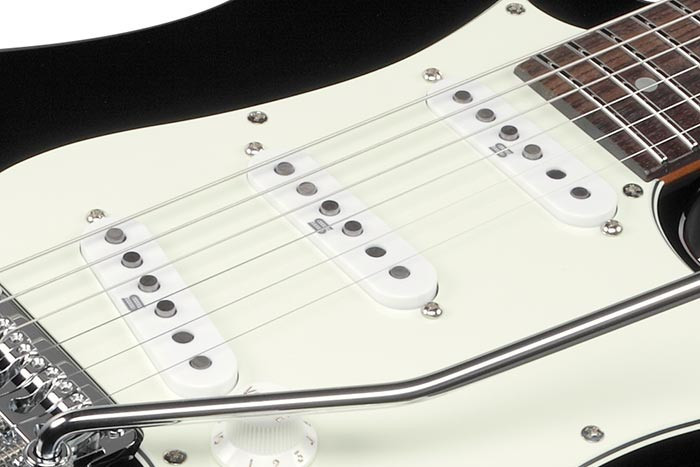

Seymour Duncan® Fortuna™ S-S-S pickups

Seymour Duncan® Fortuna™ Pickups feature a moderate output and natural clean voicing which accurately reflect subtle playing nuances. From treble to bass, the overall tonal balance is evenly adjusted and works well with various effect pedals.

Alder body

The Alder body delivers a well-balanced bright tone, enriched resonance and sustain.

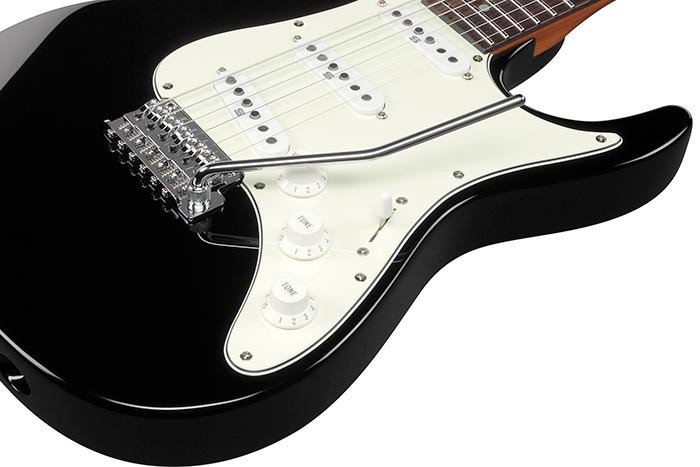

Gotoh® T1502S tremolo

The T1502S tremolo bridge features steel saddles and a steel tremolo block for a quick response and improved articulation. The 10.5mm string spacing allows for easy picking across strings and its snap-in construction makes it easy to load a tremolo arm.

Rosewood fretboard

Rosewood provides a well-balanced solid tone with a focused mid range.

Compound Radius Fretboard (228mm to 305mm)

Offering the best of both worlds, the digitized compound radius fretboard of the AZ-N is built to enhance both smooth chording and lead work in the upper register.

5 tremolo springs

Five tremolo springs allow string vibration to be more efficiently transferred to the guitar body.

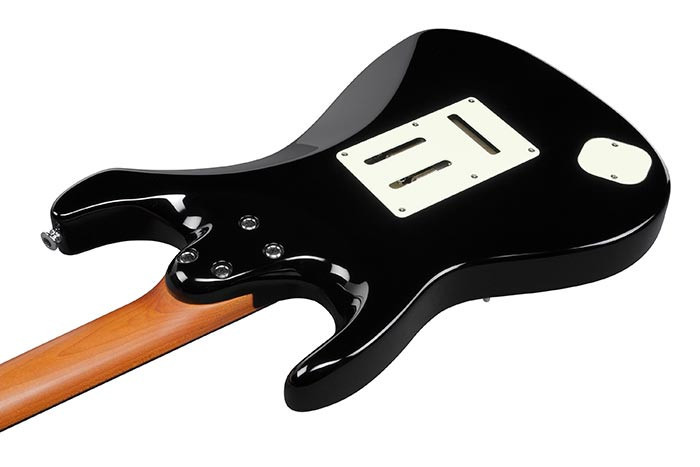

Non-recessed bridge cavity

While the AZ series features a recessed bridge cavity for fluid and dynamic tremolo action, this model has non-recessed bridge cavity. The direct contact between bridge plate and the guitar body provides better resonance and helps facilitate subtle nuances in playing dynamics.

Oval C S-TECH WOOD Roasted Maple neck

The S-TECH special roasted treatment increases the wood's stability, durability, water resistance and tolerance of temperature changes. The neck is sealed with an oil finish which helps make it feel similar to a well-played guitar neck.

Gotoh® Magnum Lock machine heads w/H.A.P.(Height Adjustable Post)

GOTOH® MAGNUM LOCK® machine heads have an established reputation for tuning stability. Its H. A. P® (Height Adjustable Post). system allows for the adjustment of string posts for the appropriate tension of each string.

Luminlay side dot inlays

The Luminlay side dot position marks make it easy for players to see fretboard position marks when performing on dark stages.

SPECS

neck type AZ Oval CS-TECH WOOD Roasted Maple neck

top/back/body Alder body

fretboard Rosewood fretboardMother of Pearl dot inlay

fret Jumbo Stainless Steel fretsPrestige fret edge treatment

number of frets 22

bridge Gotoh® T1502S bridge

string space 10.5mm

neck pickup Seymour Duncan® Fortuna™ (S) neck pickupPassive/Alnico

middle pickup Seymour Duncan® Fortuna™ (S) middle pickupPassive/Alnico

bridge pickup Seymour Duncan® Fortuna™ (S) bridge pickupPassive/Alnico

factory tuning 1E,2B,3G,4D,5A,6E

strings D'Addario® EXL110

string gauge .010/.013/.017/.026/.036/.046

nut Bone nut

hardware color Chrome

NECK DIMENSIONS

Scale : 648mm/25.5"

a : Width 42mm at NUT

b : Width 56.4mm at 22F

c : Thickness 20.5mm at 1F

d : Thickness 22.5mm at 12F

Other features:
Radius : 228mmR to 305mmR COMPOUND

Gotoh® Magnum Lock machine heads w/H.A.P.

Luminlay side dots

Fretboard Radius: 228mm@nut to 305mm@22nd fret Compound

Blender

Non-recessed bridge cavity

Hardshell case included
