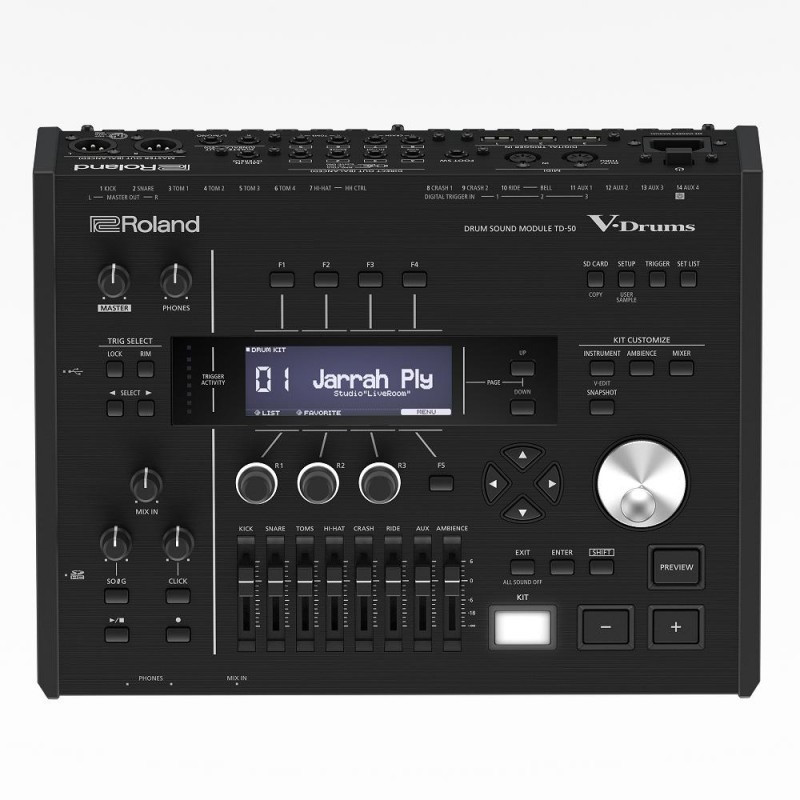

Roland TD-50: Drum Sound Module

-Drum Kits 100
-Instruments More than 400
-Effect Types Pad Compressor: each pad Pad Equalizer: each pad
Room Type: 25 types
Reverb Type: 5 types
Stereo Enhancer
Multi-Effects: 3 systems, 30 types
Master Compressor
Master Equalizer

-User Sample Import Number of User Sample: Maximum 500 (includes factory preloaded user samples)
Sound Length (total): 24 minutes in mono, 12 minutes in stereo
File formats that can be loaded: WAV (44.1 kHz, 16/24 bits)

-Song Player (SD Card) Audio File: WAV (44.1 kHz, 16/24 bits), MP3

-Recorder Recording Method: Realtime
Maximum Note Storage: approx. 40,000 notes
Export File Format: WAV (44.1 kHz, 16 bits), SMF

-Display Graphic LCD 256 x 80 dots
TRIGGER ACTIVITY Indicator (LED)

- Faders 8 (KICK, SNARE, TOMS, HI-HAT, CRASH, RIDE, AUX, AMBIENCE)

- External Memory SD Card (SDHC supported)

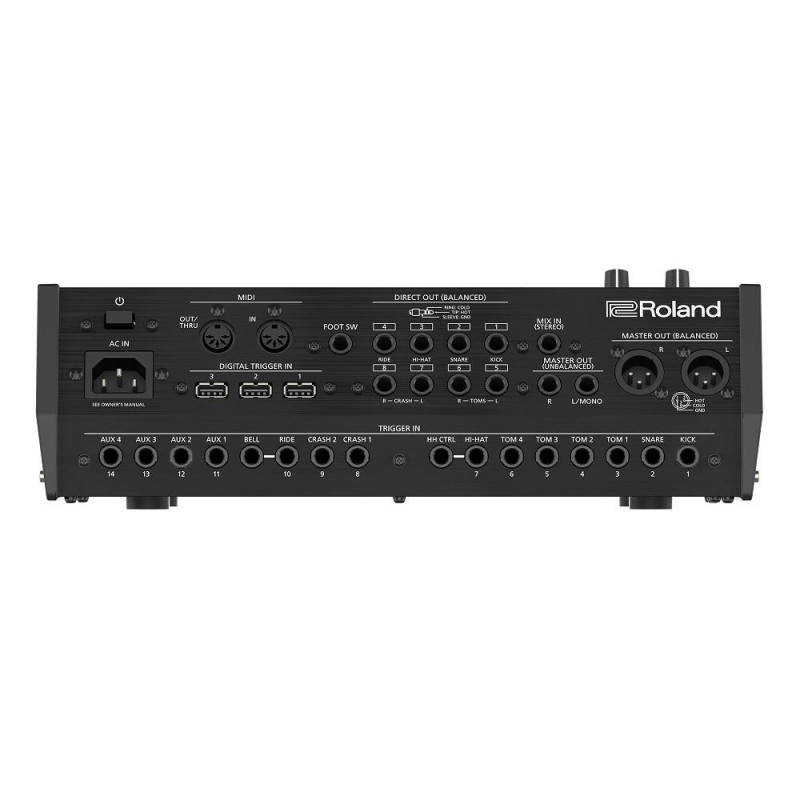

-Connectors TRIGGER IN jack x 14: 1/4-inch TRS phone type (Exclusion use with digital pad) DIGITAL TRIGGER IN port x 3: USB A type
MASTER OUT (UNBALANCED) jacks (L/MONO, R): 1/4-inch phone type
MASTER OUT (BALANCED) jacks (L, R): XLR type, balanced
DIRECT OUT (BALANCED) jack x 8: 1/4-inch TRS phone type, balanced
PHONES jack x 2: Stereo 1/4-inch phone type, Stereo miniature phone type
MIX IN jack x 2: Stereo 1/4-inch phone type, Stereo miniature phone type
MIDI (IN, OUT/THRU) connectors
USB COMPUTER port: USB B type (USB Hi-Speed AUDIO/MIDI)
FOOT SW jack: 1/4-inch TRS phone type
AC IN jack

-Number of USB Audio Record/Playback Channels
Sampling Rate (Original): 44.1 kHz
Sampling Rate (with Sampling rate converter): 96 kHz, 48 kHz
Record: 10 channels
Playback: 4 channels

-Power Supply AC 117 V, AC 220 V, AC 230 V, AC 240 V
-Power Consumption 30 W

-Dimensions
330 (W) x 255 (D) x 118 (H) mm
13 (W) x 10-1/16 (D) x 4-11/16 (H) inches

-Weight 3.3 kg/7 lbs 5 oz
