• Montage M8x 88key Synthesizer

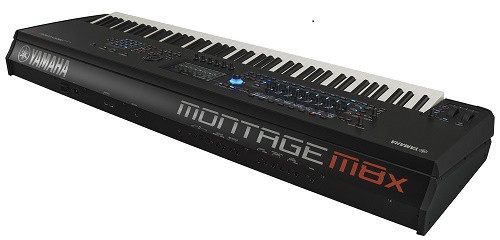

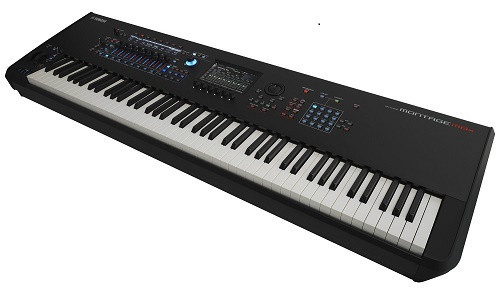

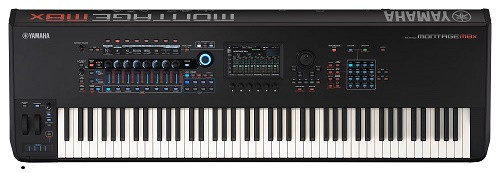

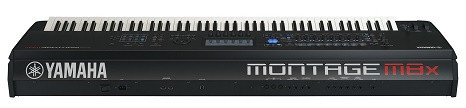

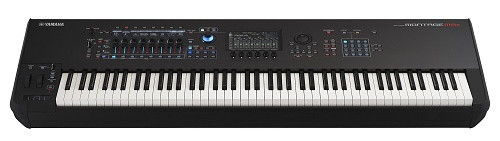

MONTAGE M8x, de vlaggenschipsynthesizer van de next generatie van Yamaha.

VIDEO

Realiseer een geweldig geluid met de drie motoren die warme vintage analoge synths, geavanceerde FM-synths en ultrarealistische instrumenten nabootsen. De Motion Control-engine verbetert deze mogelijkheden en voegt een unieke vierde dimensie van controle toe aan uw muziekproductie.

In tegenstelling tot traditionele hardwaresynthesizers overbrugt de MONTAGE M8x naadloos podium- en studioworkflows met computerconnectiviteit en -integratie.

Voor pianisten die gewogen actie met 88 toetsen willen, en synthspelers die expressieve polyfone aftertouch willen, introduceert de MONTAGE M8x een nieuw tijdperk van geluid, controle en workflow in muziekcreatie.

Size/Weight

Dimensions

Width - 1,446 mm (56-15/16")

Height - 170 mm (6-11/16")

Depth - 460 mm (18-1/8")

Weight - 28.1 kg (61 lbs., 15 oz.)

Packing Box

Width - 1,647 mm (64-7/8")

Height - 261 mm (10-1/4")

Depth - 572 mm (22-1/2")

Control Interface

Keyboard

Number of Keys - 88

Type - GEX Keyboard

Initial Touch - Yes

Aftertouch - Yes (Polyphonic After Touch)

Tone generator

Tone Generator - Motion Control Synthesis Engine AMW2: 128 Elements (max.), FM-X: 8 Operators, 88 Algorithms, AN-X: 3 Oscillators, 1 Noise

Maximum Polyphony - AWM2: 256 (max.; stereo/mono waveforms), FM-X: 128 (max.), AN-X: 16 (max.)

Multi Timbral Capacity - 16 Parts (internal), Audio Input Parts (A/D*1, USB*1) *1 stereo Part

Wave - Preset: 10 GB (when converted to 16-bit linear format), User: 3.7 GB

Performance - 3,369

Filter - 18 types

Effects - Reverb x 12 types, Variation x 88 types, Insertion A x 88 types*2, Insertion B x 89 types*3, Master Effect x 26 type, *2 A/D part insertion x 83 types *3 Part 2~16: 88 type, A/D part insertion x 83 types (Preset settings for parameters of each effect type are provided as templates) Master EQ (5 bands), 1st part EQ (3 bands), 2nd part EQ (2 bands)

Other

Controllers - Master Volume, A/D Input Gain knob, Pitch Bend wheel, Modulation wheel, Ribbon Controller, Control Slider x 8, Knob x 8, Super knob, Display knob x 6, Portament knob, Data Dial, Assignable switch x 2, MSEQ trigger switch, Portamento switch, Keyboard hold switch, Ribbon Controller hold switch

Display - 7" TFT Color Wide VGA LCD touch screen, 512 x 64 Full-dot LCD

Connectors - [USB TO DEVICE] x 2, [USB TO HOST], MIDI [IN]/[OUT]/[THRU], FOOT CONTROLLER [1]/[2], FOOT SWITCH [SUSTAIN]/[ASSIGNABLE], OUTPUT (BALANCED) [L/MONO]/[R] (6.3 mm, Balanced TRS jacks), ASSIGNABLE OUTPUT (BALANCED) [L]/[R] (6.3 mm, Balanced TRS jacks), [PHONES] (6.3 mm, standard stereo phone jack), A/D INPUT [L/MONO]/[R] (6.3 mm, standard phone jacks)

Power Consumption - 36 W

Accessories - AC Power cord, Quick Guide, Cubase AI Download Information, Expanded Softsynth Plugin for MONTAGE M Download Information

Live Sets - Preset: 128 and more, User: 2,048

Performance Recorder

Note Capacity - 1 Song/Pattern: Approx. 130,000 notes, Store area: Approx. 520,000 notes (Pattern); approx. 520,000 notes (Song)

Note Resolution - 480 ppq (parts per quarter note)

Tempo (BPM) - 5 – 300

Sequence formats - MONTAGE original format, SMF formats 0, 1

Arpeggio - Parts: 8 Parts simultaneous (max.), Preset: 10,922 types or more, User: 256 types

Sequencer

Patterns - 128 patterns

Pattern tracks - 16 Sequence tracks

Pattern Recording type - Real time replace, Real time overdub

Songs - 128 songs

Song tracks - 16 Sequence tracks, Tempo track, Scene track

Song recording type - Real time replace, Real time overdub, Real time punch in/out

Functions

USB audio interface - [Sampling Frequency = 44.1 kHz] Input: 6 channels (3 stereo channels), Output: 32 channels (16 stereo channels) [Sampling Frequency = 44.1 kHz - 192 kHz] Input: 6 channels (3 stereo channels), Output: 8 channels (4 stereo channels)
